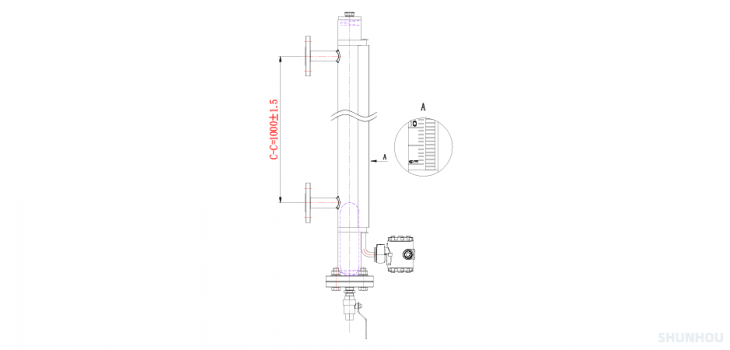

Model: LTD-S11BKDO1-1000P (Compatible with MFLG series)
Operating Temperature(deg C): 145
Operating Pressure(MPa):0.3
Chamber Material:SUS304
Float Material: SUS316
Mounting:side-side
Process Connection: Customizable (Feel free to contact us)
Connection Standard:ASME B16.5 2009
Distance C to C (mm):1000mm
Measuring Range (mm):0~1000mm
Scale range(cm):0-100.0cm
Chamber End Top:Weld cap
Chamber End Bottom:Flange D130+ Plug NPT1/2″
Level transmitter: remote transmitter.
Housing case, ExdIICT6Gb
Signal output: 4-20mA
Cable gland: M20x1.5
