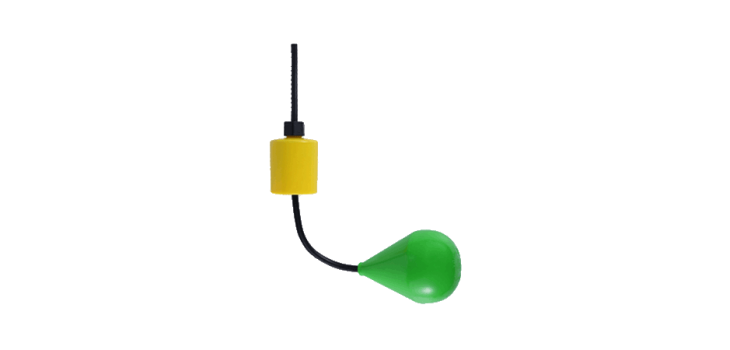

The cable float type liquid level switch is designed using the principle of gravity and buoyancy. It has the characteristics of simple structure, reliable performance (fluctuation of liquid level will not malfunction), convenient installation, low price, long service life, etc. It is good for long-distance multi-point control, submerged pumps, fluctuating liquids or liquids with impurities, and the cable length can be customized to any length.
There are two kinds of products: metal and plastic, metal cable float level switch, which is characterized by high temperature resistance, and the cable adopts high flexible cable, which is durable. Plastic cable float switch, the contact parts are micro switches, and the wetted part is made of plastic PP. The product can be used in corrosive environments below 80 °C, making it widely used in liquid level control of various large containers.And it is widely used in sewage treatment, wells, water supply, drainage, fire fighting and other liquid level automatic control environments containing corrosive liquids.
Measurement principle
The cable float level switch is integrally formed by plastic injection. It uses a micro switch or a dry reed switch as a contact part, and the switch is connected to a three-core cable. When the cable float is raised at a certain angle with the weight as the origin (usually the upward angle of the micro switch is 28°±2°, and the upward angle of the reed switch is 10°±2°), the switch will output an ON or OFF signal.

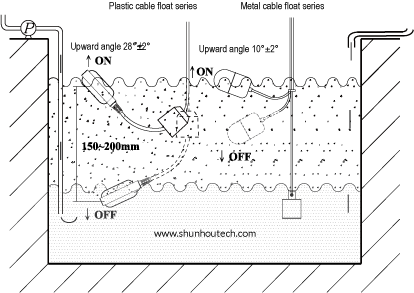

Installation legend
Application Features
Its appearance has no movable mechanism, and it will not be stuck by floating objects.All parts in contact with liquid are made of plastic and have good corrosion resistance. Suspended installation, suitable for underground pools, adjustable cable length.
